2022 Vista Award Winner: Renovation

Monroe Carell Jr. Children's Hospital keeps up with growing population

The hospital's vertical expansion and renovation project was completed with minimal interruptions
|

Image courtesy of Turner Construction Company

The Monroe Carell Jr. Children’s Hospital at Vanderbilt University Medical Center (VUMC) in Nashville, Tenn., is middle Tennessee’s only free-standing children’s hospital and the region’s sole comprehensive, nonprofit pediatric health care provider. Considering that Nashville and its surrounding suburbs have increased in population by nearly 21% over the past 10 years, VUMC recognized that this hospital needed to correspondingly expand in size and scope.

Hence, a 250,000-square-foot vertical expansion and renovation of the hospital was announced, with the goals of consolidating programs geographically to improve staff efficiency and providing flexibility to adapt and expand programmatic areas as needed.

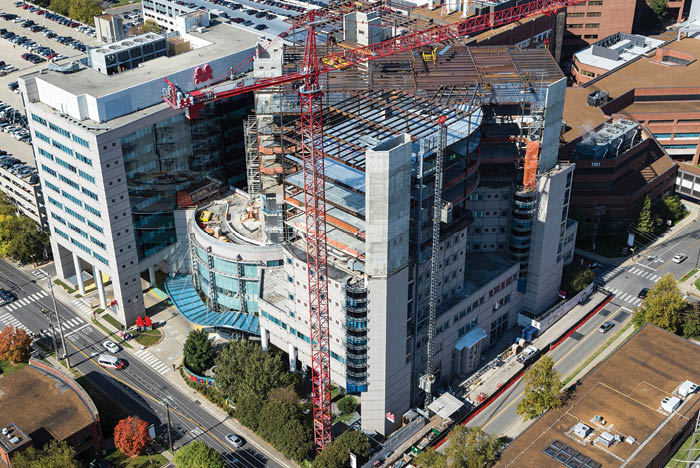

The renovation project involved adding four new inpatient floors on top of the hospital’s existing nine-story structure, with two of the floors being fully fit-out and the other two floors comprising shell space. Two new elevators were cut in from the main lobby to the penthouse of the new addition. Additionally, substantial renovations occurred in the existing hospital below the expansion.

Once completed, the new floors upped inpatient bed capacity from 261 to 337, and the total footprint of the renovated hospital spanned more than 1 million square feet.

Bobby Otten, senior director of planning, design and construction for Vanderbilt University Medical Center, explains that the new 10th floor is a 38-bed unit designated for cardiac care, uniting all cardiology-related specialties onto one floor and providing ample space in each room for overnight family stays.

Image courtesy of Turner Construction Company

“The 11th floor has another 38 beds for surgical care. New patient rooms on that level are universally designed to accommodate the neonatal intensive care unit, pediatric intensive care unit, cardiac and acute care patients,” Otten says. “Twenty-three rooms are equipped with mobile critical care technology to give the health care teams more flexibility for patient care. The new space also includes a dedicated pharmacy, extracorporeal membrane oxygenation capabilities, procedure rooms and a universal waiting area. Meanwhile, core and shell for floors 12 and 14 are completed to accommodate future expansion.”

Energy reduction strategies centered on energy benchmarking, modeling and commissioning. The lighting power density, which measures 0.87 watts per square foot, is now 28% better than code requirements of 1.21 watts per square foot.

“Climate zone 4A-informed heating and cooling loads for energy model calculation were performed for informed system sizing and operational costs, and a WUFI [software modeling] analysis was completed for the exterior envelope,” Otten says.

Aiming for zero interruptions to hospital operations, there was increased coordination and focus for scheduled shutdowns and impacts to the day-to-day hospital operations over the 48 months of construction.

Image courtesy of Turner Construction Company

“The project plan called for over 500,000 work hours to be completed working in an operational hospital that treats more than 270,000 pediatric outpatients annually,” Otten says.

The team collaborated closely on several key items for seamless facility performance. For example, roofers, on-site every day, made immediate patches when cuts in the roof were made, and temporary roofing was put in where larger openings were created. Additionally, to reduce noise disturbance, self-consolidating concrete was used for the shear walls, and workers utilized water drills. And to utilize the roof as a work area, the team had to remove and temporarily relocate the roof helipad to a nearby parking lot on the VUMC campus.

“The most technically challenging part of the renovation was the addition of two new elevators that had to be cut through the nine floors of the existing structure,” Otten says. “To support the overbuild, further renovation of the existing building encompassed structural support, electrical and mechanical infrastructure, expansion of the existing penthouse as an intermediate mechanical level, and expansion of support service areas.”

Image courtesy of Turner Construction Company

Everyone involved is thrilled with the results. “Over the past four years, our group tackled each challenge with teamwork while keeping what was the best solution for the children in mind,” Otten says. “Feedback from the patients and staff has been positive.”

Otten and his colleagues feel honored to be named Vista Award winners in the renovation category. “We understand that there are many exceptional addition and renovation projects in the U.S.,” he says. “Our team is appreciative and humbled by this recognition.”


Project Info

  • Square feet: 250,000
  • Number of beds: 76
  • Cost: $115,027,408
  • Start date: September 2016
  • Completion date: October 2020

Team Members

  • Bobby Otten, senior director of planning, design and construction, Vanderbilt University Medical Center, Nashville, Tenn.
  • Brian Dowd, AIA, principal, Blair + Mui Dowd Architects, PC, New York City
  • Jeremy Salmon, PE, principal, Structural Design Group, Nashville
  • Clay Seckman, PE, HFDP, health care market leader, Smith Seckman Reid Inc., Nashville
  • Paul Lawson, business manager, Turner Construction Company, Nashville
